      AESCULAP® EinsteinVision® 3.0 FI – SEE BETTER. SEE BEYOND.

      3D Fluorescence Imaging in
      real-time

      Fluorescence Imaging (FI) aims for the best patient outcome during diagnostics or surgery. [1] In minimally invasive surgery it is used in numerous applications such as vessel or visceral perfusion assessment, visualisation of bile duct anatomy or (sentinel) lymph node mapping.

      The Aesculap 3D Fluorescence Imaging technology offers three different FI overlay modes in real-time

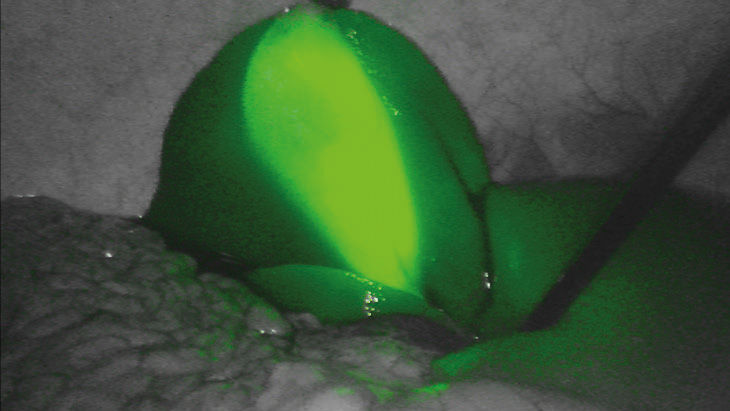

      FI green – 3D Fluorescence Imaging technology

      FI green

      This fluorescence mode indicates the presence of ICG in green color.

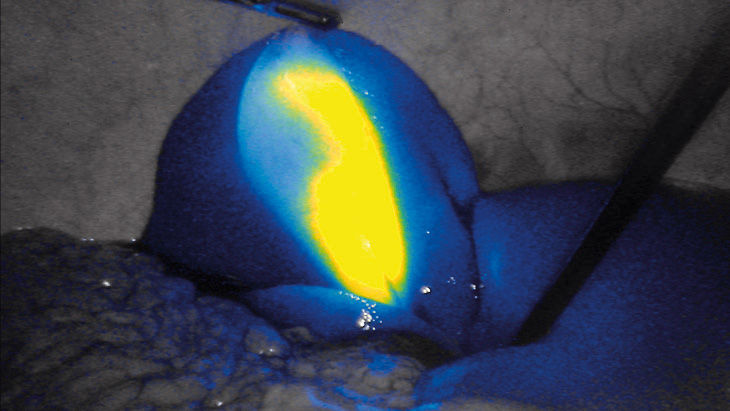

      FI intensity – 3D Fluorescence Imaging technology

      FI intensity

      The display of the ICG signal in different colours (yellow represents a high FI intensity signal) enables the visual representation of the ICG intensity in the tissue.

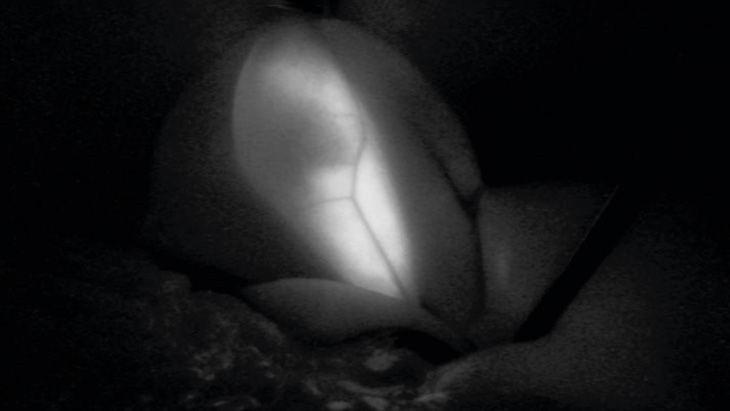

      FI white – 3D Fluorescence Imaging technology

      FI white

      The monochromatic mode provides the greatest possible image contrast by displaying the white FI signal on a black background.

      Pure viewing pleasure

      Premium 3D

      EinsteinVision® 3.0 offers exceptional 3D image quality with native Full HD resolution. In addition, the system has an impressive depth of field and high image contrast.

      Surgeons in the OR with EinsteinVision® 3D camera system
      3D fluorescence imaging in real-time

      Take a different look at anatomy

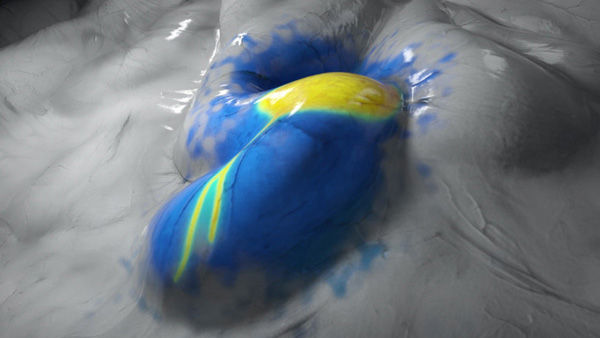

      Fluorescence-guided surgery – 3D fluorescence imaging in real-time

      The FI intensity mode, as one of three different FI modes, displays the ICG signal in different colours for better differentiation. The fluorescence modes can be easily activated via a camera head button.

      Complete perspective

      Anti-fogging function

      Fogged optics are bothersome, impair the view, disrupt work and can affect patient safety.

      Integrated heating elements in the endoscope tip of the camera effectively and permanently prevent fogging of the optics within seconds.

      Surgeon in the OR wears 3D glasses with anti-fogging function

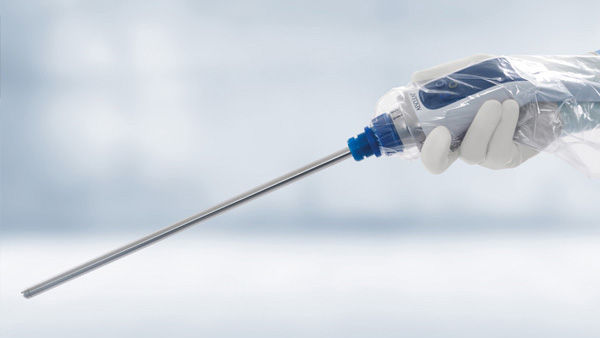

      EinsteinVision® 3D camera head with different sterile handling concept

      Added value in imaging

      Different sterile handling concept

      This concept requires no reprocessing of the 3D camera head with endoscope and results in consistent image quality, with virtually no image degradation over the life of the product. The product is always ready for use as it remains in the OR.

      Always in focus

      Autofocus effect

      View the OR situs in sharp depth of focus without manual re-focusing.

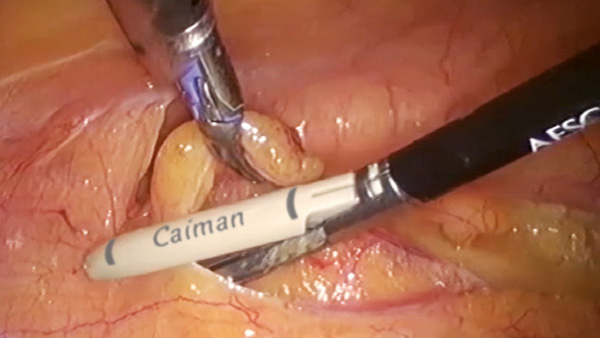

      EinsteinVision® in laparoscopic surgery with autofocus effect

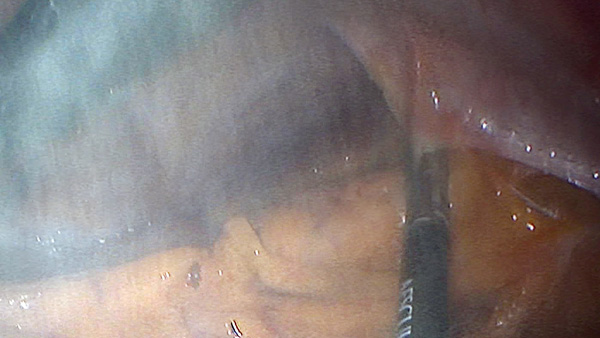

      EinsteinVision® in laparoscopic surgery with smoke reduction

      Clarity

      Smoke reduction

      Electrosurgical current regularly generates disruptive smoke. Limited visibility conditions can have an influence on patient safety. With the push of a button, a special algorithm reduces the visible impairment.

      Differentiated tones

      Red enhancement

      A clearer representation of vessels and greater differentiation of red tones are also beneficial.

      The integrated algorithm provides this with the push of a button.

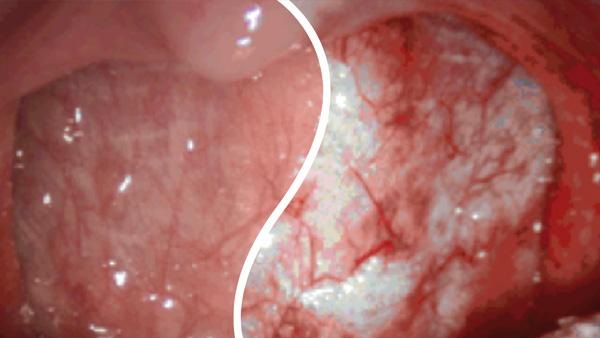

      EinsteinVision® in laparoscopic surgery with red enhancement

      Are you interested in learning more about 3D camera system EinsteinVision® 3.0 FI

      Contact us now

      Proven value of 3D EinsteinVision® 3.0 FI

      Customer benefits of EinsteinVision® 3.0 FI

      • Shorter operating times using 3D technology [2]
      • Clear view through integrated, controlled anti-fog function
      • Extended product life due to 3D sterile delivery concept [3]
      • Extended system use, as both 2D and 3D camera heads can be connected to the visualisation platform
      • Interdisciplinary use
      • Application flexibility through three fluorescence overlay modes
      • Simultaneous display of live image and superimposed fluorescence mode
      • Switch between live image and fluorescence modes via foot switch or camera head control

      Compendium on AESCULAP® EinsteinVision® 3.0 FI

      This compendium provides an introduction to the topic of fluorescence imaging. It is subdivided according to different indications (general surgery, gynecology, urology) and interventions. The QR codes lead to the original scientific abstracts.

      Read more as PDF download

      Experience reports

      3D laparoscopy – use in bariatric surgery

      Dr. med. Mirko Otto, Acting Senior Physician, Surgical Clinic, Mannheim University Medical Center

      Read more

      Now also in 3D – three-dimensional images enable in-depth viewing

      Dr. med. Bernd Heinzmann, Senior Physician, Surgery/Pediatric Surgery, St. Marienstift Hospital Magdeburg GmbH

      Read more

      The 3D laparoscopy – new technology on trial

      Priv.-Doz. Dr. med. Peter Grimminger, Senior Consultant Head Upper GI Surgery, Minimally Invasive Surgery and Robotics, University Medical Center of the Johannes Gutenberg University Mainz

      Read more

      Example of the use of 3D video technology in rectal resection

      Dr. med. Max Mayr, Senior Physician, Clinic for General and Visceral Surgery Barmherzigen Brüder Regensburg Hospital

      Read more

      3D laparoscopy – a bridge between conventional surgery and robotics

      Prof. Dr. Jörg Glatzle, Senior Consultant of the Clinic for General and Visceral Surgery Deputy Medical Director, Konstanz Hospital

      Read more

      Related documents

      3D technology in laparoscopy

      A new dimension in the operating room

      Read more

      Are you interested in learning more about 3D camera system EinsteinVision® 3.0 FI

      Contact us now

      [1] Dip F et al. Randomized Trial of Near-infrared Incisionless Fluorescent Cholangiography. Ann Surg. 2019 Dec;270(6):992-999. DOI: 10.1097/SLA.0000000000003178

      [2] Vettoretto N et al. Why laparoscopists may opt for three-dimensional view: a summary of the full HTA report on 3D versus 2D Laparoscopy by S.I.C.E. (Società Italiana de Chirurgia Endoscopia e Nuove Tecnologie). Surg Endosc 2018 (32):2986-93. DOI: 10.1007/s00464-017-6006-y

      [3] Autoclaving exposes endoscopes and light cables to repeated thermal stress, resulting in a shorter life span. As the EV3.0 FI camera head is not autoclaved, this does not affect the life of the product.
