      OrthoPilot® Elite

      TKA - Total Knee Arthroplasty

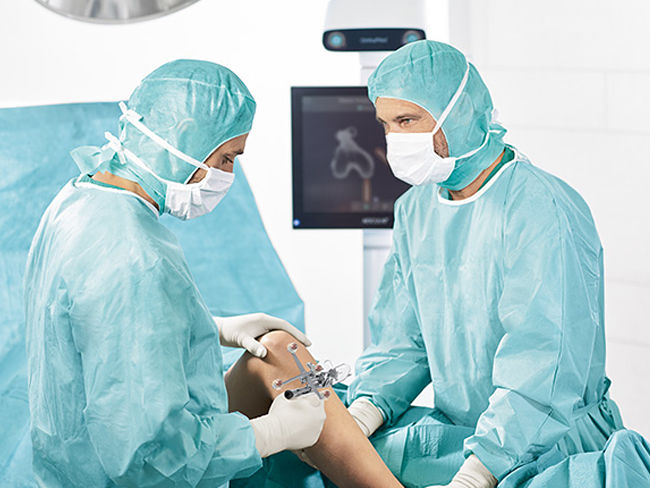

      Two surgeons with the OrthoPilot® Elite navigation system in the OR

      Full control. In real time.

      In surgery, precise goal achievement, performance, and real-time information are crucial to the success of the operation. OrthoPilot® Elite gives surgeons exact, continuous feedback on implant and instrument position, So you can make the right decisions based on even more solid information.

      TKA 6.0 – A new surgical experience

      3 different Man-Machine-Interfaces

      Everything a surgeon desires: 3 possibilites of software interaction to fully adapt the system to the individual surgeons‘ preferences. Take over control by either using the brand-new Multitool, gesture recognition or the wireless footswitch.

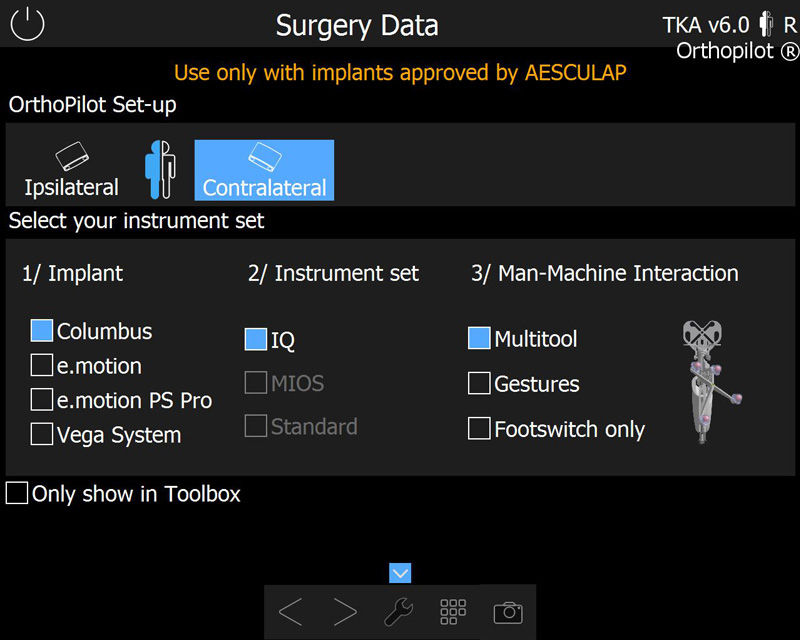

      Screenshot of the OrthoPilot® TKA software – Surgery data
      Screenshot of the OrthoPilot® TKA software – Choose surgery options

      Customisable software workflow

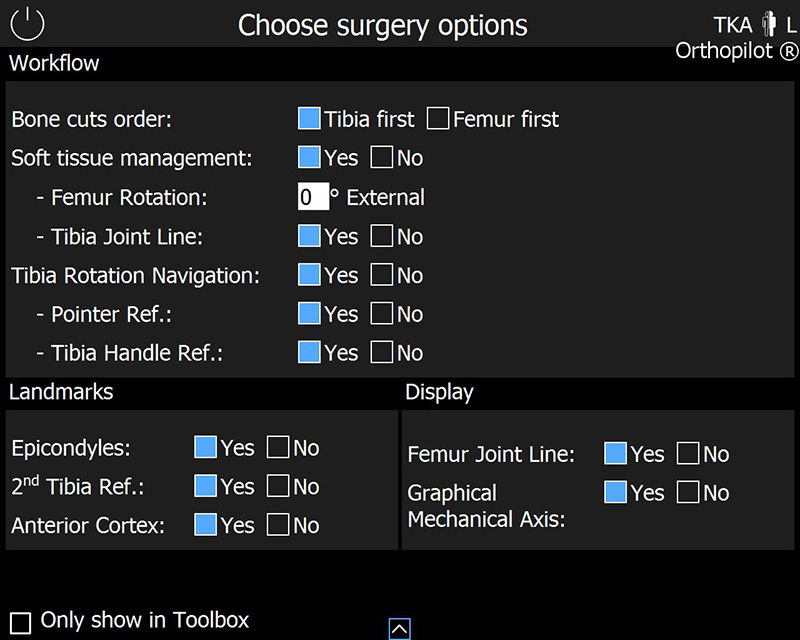

      TKA 6.0 offers several surgery options to help aligning the navigation experience with your personal TKA workflow. Whether tibia rotation navigation or soft tissue management – various options can be set. Best of all, it needs to be defined once and can then be saved for upcoming surgeries so you can start collecting data immediately.

      Reduced number of instruments and instrument changes

      The symbiosis of a streamlined software conceptualisation and reworked navigation instrumentation simplifies the workflow, leads to a reduced number of required instruments and reduces instrument changes. Speeding up the process of data acquisition [1] and improving ease-of-use intraoperatively are two remarkable benefits of TKA 6.0.

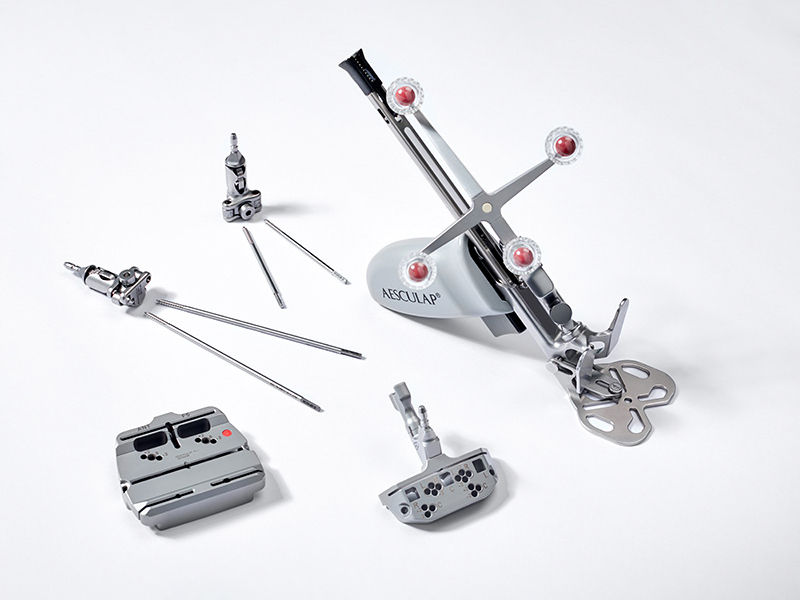

      OrthoPilot® TKA instruments and transmitter

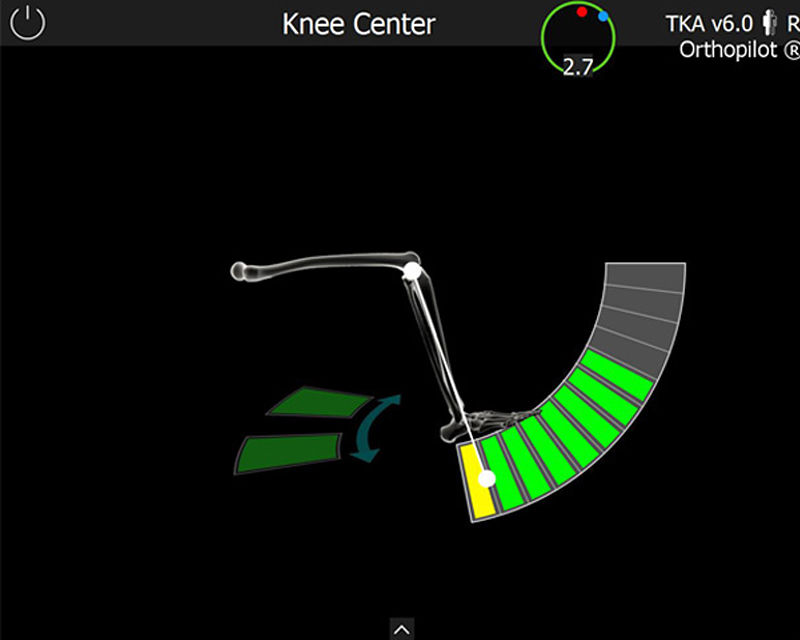

      Screenshot of the OrthoPilot® TKA software – Knee center

      Knee kinematic module

      The new knee kinematic module shows the kinematic behaviour of the knee joint in different stages of the surgery. This optional tool allows to study the V/V-laxity of the knee, along the full range of motion, and depicts for every single degree of flexion the corresponding V/V-deviation. Furthermore, the contact points of the projected femoral condyles onto the tibial plane over the range of motion are displayed. Kinematic measurements can be performed at different stages in surgery, e.g. the initial situation prior to applying any corrective measures (bone cuts and/or ligament releases) vs. the post-operative situation. The knee kinematic module is especially suitable for study purposes.

      Hip center acquisition

      TKA 6.0 features a brand-new hip center acquisition movement to further simplify and accelerate the process of acquiring this essential reference for component alignment. The robust algorithm only requires one vertical movement as well as an abduction of the femur to compute the center of the hip joint. Hip center acquisition has never been so quick and easy.

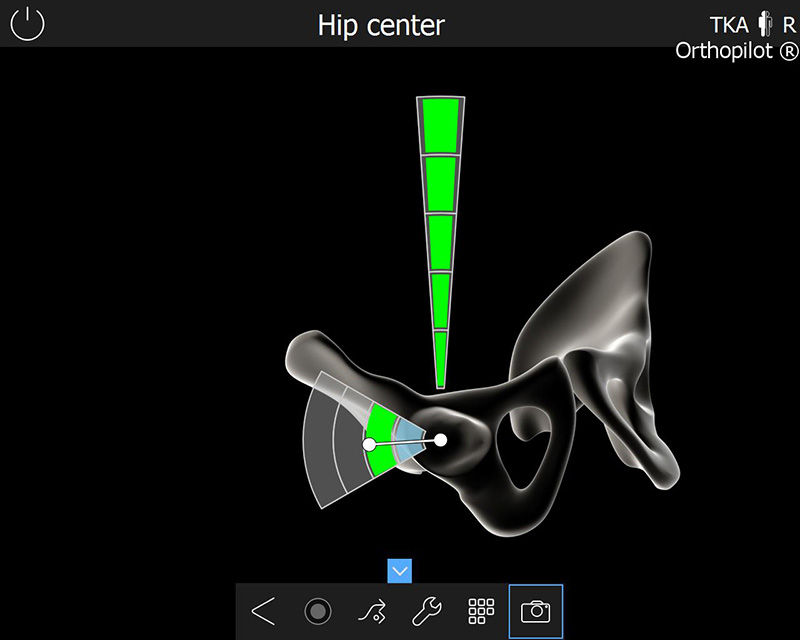

      Screenshot of the OrthoPilot® TKA software – Hip center
      OrthoPilot® TKA Multitool

      Take over control: The new Multitool

      The Multitool – a new multifunctional instrument that combines 4 instruments in 1 – serves as one possible man-machine-interface to control TKA 6.0. By combining cutting-edge technology with simple, intuitive handling, the Multitool allows surgeons to operate ergonomically while being  flexible and precise. Due to its‘ smart click-mechanism the footswitch becomes obsolete.



      The entire control is in the palm of your hand.

      Reduced invasiveness: Monocortical transmitter fixation

      A new monocortical 2-Pin-fixation for the navigation transmitters reduces invasiveness and helps improve transmitter visibility. 3.2 mm pins in different lengths allow to respect the individual soft tissue situation and can be placed either through separate stab incisions or even within the incision (e.g. on the femur). Four different adapter positions and a 180° swing angle facilitate the transmitter orientation to the stereo-optical camera system and reduce efforts in camera positioning.

      OrthoPilot® TKA instruments and transmitter

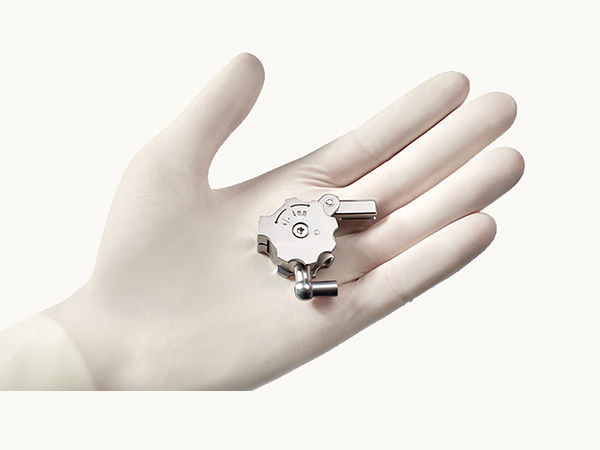

      OrthoPilot® TKA cut alignment instrument

      Precise and easy: The cut alignment instrument

      Aligning the cutting guide for the distal femur or proximal tibia resection, has never been so easy. This optional instrument can be simply plugged into the corresponding cutting guide and roughly positioned in the desired cutting height. Further fine-tuning is done millimeter by millimeter and degree by degree. In doing so, all three degrees of freedom – V/V-alignment, slope and cutting height, can be taken into account step by step.

      TKA 6.0 – 3D animation

      Tibia first

      Related website

      Clinical evidence

      Literature data base

      Get in touch with our OrthoPilot®​ team.

      OrthoPilot®​ contact form

      [1] A comparison between the new TKA 6 software application and a predecessing version of TKA software application showed a significant time reduction in data acquisition of 28%. Source: Lampe et al., Cogent Engineering (2017),4:1401440.
